MACKAY - AL SERIES
Uncompromising strength, unmatched style – that’s our AL Alloy series.
Australian made and designed. Patented Alloy extrusions and full seam welding. Why settle for anything less?
Engineered to perform. Seamless construction. Premium performance. Fully welded unique profile. Australian boaters demand the best.
Suitable for boats 5.5m to 8.2m. Single and tandem axle available.
Suitable for boats up to 5.5M:
AL5000-13-M Single Axle Mechanical Brakes GTM: 1,350kg
AL5000-14-M Single Axle Mechanical Brakes GTM: 1,480kg
AL5000-14HX-M Single Axle Mechanical Brakes GTM: 1,650kg
AL5000T-13-M Tandem Axle Mechanical Brakes GTM: 1,999kg
Suitable for boats up to 5.8M:
AL5500-13-M Single Axle Mechanical Brakes GTM: 1,350kg
AL5500-14HX-M Single Axle Mechanical Brakes GTM: 1,650kg
AL5500T-13-M Tandem Axle Mechanical Brakes GTM: 1,999kg
Suitable for boats up to 6.1M:

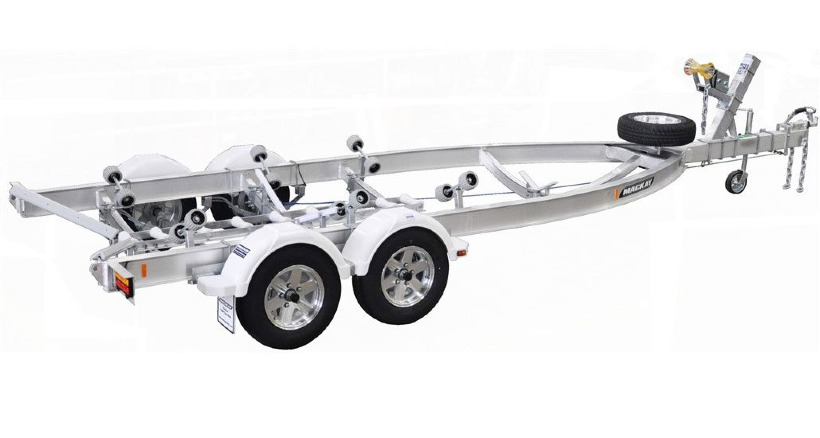

AL5750T-13-M Tandem Axle Mechanical Brakes GTM: 1,999kg
AL5750T-14-HB Tandem Axle Electric Brakes GTM: 2,600kg
Suitable for boats up to 6.5M:

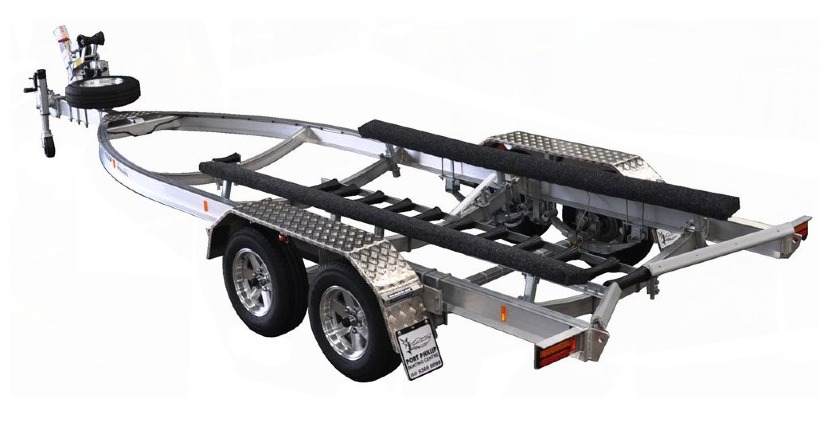

AL6000T-13-M Tandem Axle Mechanical Brakes GTM: 1,999kg
AL6000T-14-HB Tandem Axle Electric Brakes GTM: 2,600kg
AL6000T-14LS-HB Tandem Axle Electric Brakes GTM: 3,200kg
Suitable for boats up to 7.0M:
AL6500T-14LS-HB Tandem Axle Electric Brakes GTM: 3,200kg
AL6500T-15HD-HB Tandem Axle Electric Brakes GTM: 3,500kg
AL6500T-15HDE-HB Tandem Axle Electric Brakes GTM: 3,750kg
Suitable for boats up to 7.4M:

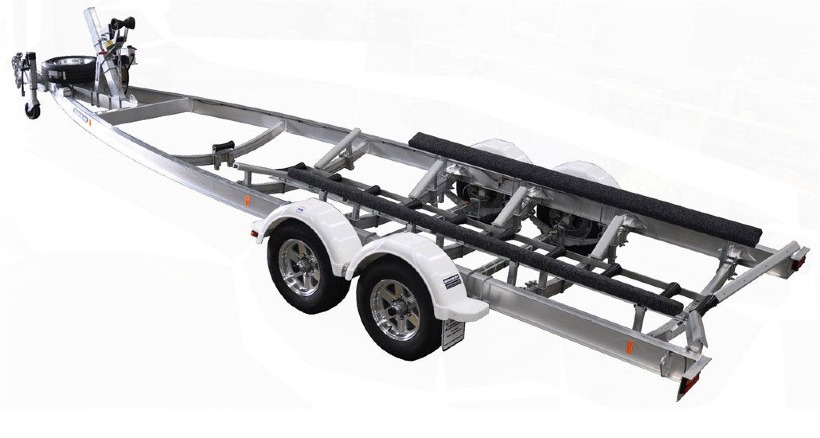

AL7000T-15HD-HB Tandem Axle Electric Brakes GTM: 3,500kg
AL7000T-15HDE-HB Tandem Axle Electric Brakes GTM: 3,750kg
AL7000T-15HD-HB Tandem Axle Electric Brakes GTM: 4,000kg
AL7000T-15XHD-HB Tandem Axle Electric Brakes GTM: 4,499kg
Suitable for boats up to 7.8M:
AL7500T-15HD-HB Tandem Axle Electric Brakes GTM: 3,500kg
AL7500T-15HDE-HB Tandem Axle Electric Brakes GTM: 3,750kg
AL7500T-15HD-HB Tandem Axle Electric Brakes GTM: 4,000kg
AL7500T-15XHD-HB Tandem Axle Electric Brakes GTM: 4,499kg
AL7500TR-15HD-HB Tri Axle Electric Brakes GTM: 4,499kg
Suitable for boats up to 8.2M:
AL8000T-15XHD-HB Tri Axle Electric Brakes GTM: 4,499kg
AL8000TR-14XHD-HB Tandem Axle Electric Brakes GTM: 4,499kg
AL Series Features:
Rigid Welded Australian Frame
Low Ride Australian Axles
Centering "V" Guides
Fully Welded Gussets for Extra Strength
High Grade Australian Aluminium Frame with Two Year Structural Warranty
Stylish Alloy Wheels
Plastic Guards Fitted as Standard
Aluminium Guards Standard on Models with 4 Tonne GVM and Over
Custom Designed to Suit Your Boat
Transom Tie Down Points
Wide Capture Integral Guide on System
Keel Roller Ladder and Side Carpet Skids or Optional Roller for Maximum Support
Bearing Buddies with Covers
LED Lights
Photos are for illustration purposes and may include optional upgrades.
Specifications are subject to change due to consistent updates and improvements to each model. Mackay is also a custom builder which means that specifications are commonly changed to meet each customers requirements. We recommend when choosing your trailer to speak with our sales team to ensure you select the right trailer for your needs.
