MACKAY - KRX OFFROAD SERIES
Start your next adventure with the ultimate custom off-road boat trailer.
The ultimate in design for off-road adventuring, the KRX features large section steel construction, mesh A-frames and walkways as standard. Mackay’s custom options mean you can change what you need, to make your trailer perfect for you and your boat.
WHAT SETS THE KRX SERIES APART FROM THE REST?
The Mackay KRX doesn’t push the limits of off-road adventuring, it smashes them with standard features such as:

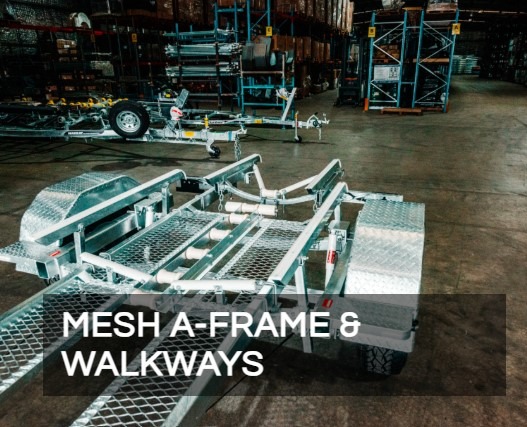

Mesh A-frame:
Galvanised, corrosion resistant mesh A-frames offer extra support and protects your boat hull from debris when towing.
Mesh walkway:
Mesh walkway runs both sides of the centre keel support, for extra space and stability.

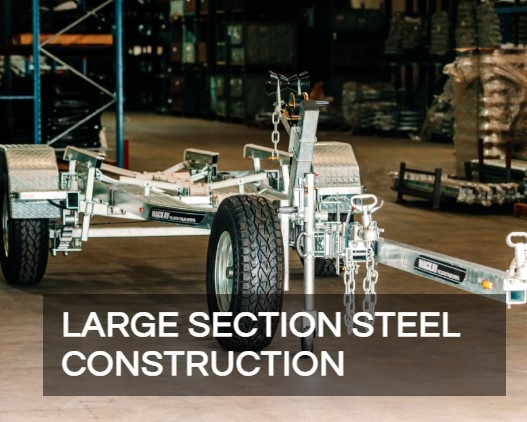

Steel construction:
Large section steel construction with extra gussets, make it a heavy duty design and build.
Drawbar:
Additional length to drawbar – makes it great for river launching

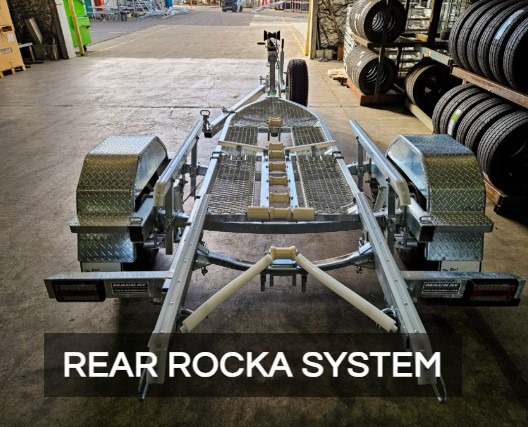

Self centring:
Self centring guides and rear tilting frame system to make launching and retrieving a breeze.
Off-road galvanised springs:
Off-road galvanised springs give you a smoother ride despite road conditions

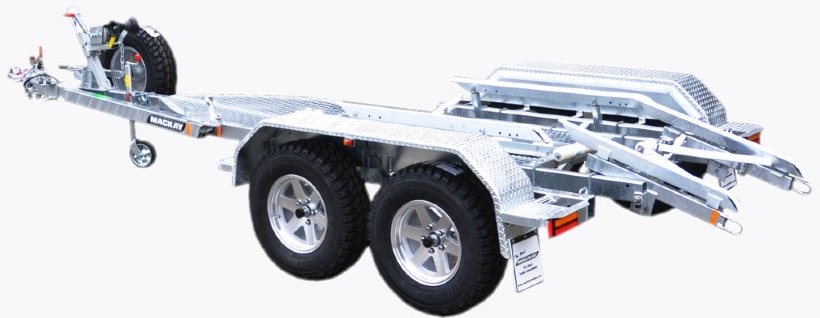

Single and tandem axle available.
Suitable for boats up to 4.4M:
KRX4000-14 Single Axle Unbraked GTM: 749kg
KRX4000-14-M Single Axle Mechanical Brakes GTM: 1,480kg
KRX4000-15 Single Axle Unbraked GTM: 749kg
KRX4000-15-M Single Axle Mechanical Brakes GTM: 1,650kg
Suitable for boats up to 4.8M:
KRX4500-14 Single Axle Unbraked GTM: 749kg
KRX4500-14-M Single Axle Mechanical Brakes GTM: 1,480kg
KRX4500-15-M Single Axle Mechanical Brakes GTM: 1,650kg
Suitable for boats up to 5.2M:
KRX4750-14-M Single Axle Mechanical Brakes GTM: 1,480kg
KRX4750-15-M Single Axle Mechanical Brakes GTM: 1,650kg
Suitable for boats up to 5.5M:
KRX5000-15-M Single Axle Mechanical Brakes GTM: 1,650kg
KRX5000T-15-M Tandem Axle Mechanical Brakes GTM: 1,999kg
Photos are for illustration purposes and may include optional upgrades.
Specifications are subject to change due to consistent updates and improvements to each model. Mackay is also a custom builder which means that specifications are commonly changed to meet each customers requirements. We recommend when choosing your trailer to speak with our sales team to ensure you select the right trailer for your needs.
