DUNBIER - Rollamatic Series
Standard Series - Width Between Guards: 1,590mm
RW4.7M-13B Single Axle Mechanical Brakes GTM: 1,450kg

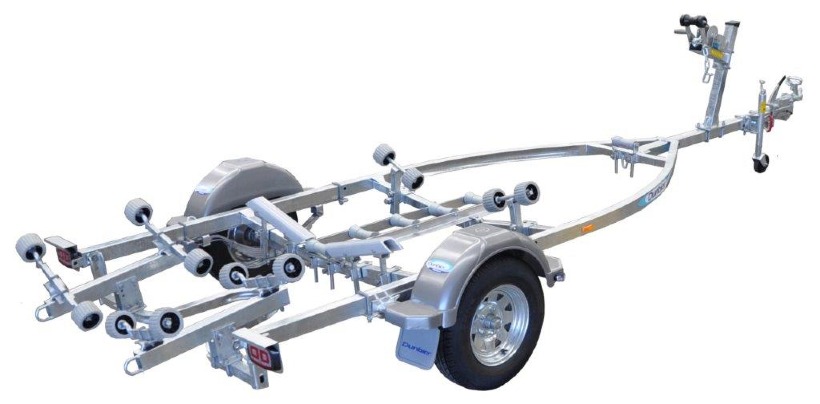

RW5.0M-13B Single Axle Mechanical Brakes GTM: 1,450kg
Wide Series - Width Between Guards: 1,590mm
RW5.3M-13B Single Axle Mechanical Brakes GTM: 1,450kg
RW5.7M-13B Single Axle Mechanical Brakes GTM: 1,450kg

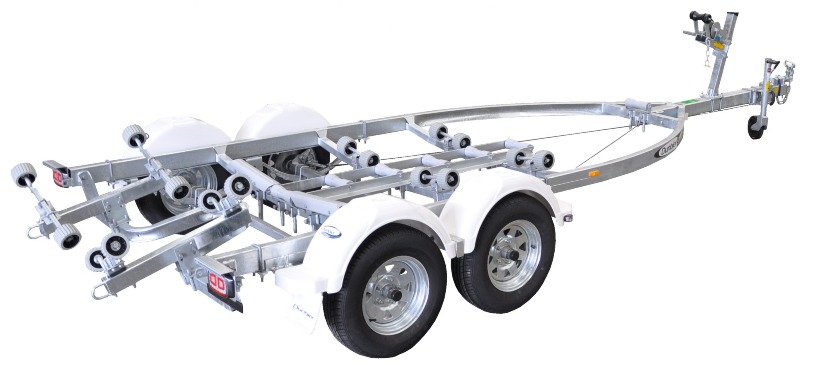

RW5.7M-13TB Tandem Axle Mechanical Brakes GTM: 2,000kg
RW6.2M-13TB Tandem Axle Mechanical Brakes GTM: 2,200kg
WHAT MAKES THE ROLLAMATIC SO PERFECT?
The secret to the Rollamatic’s fantastic performance lies in the rear roller cradle. It’s unique entry cradle that rotates independently on the main frame, plus keel support means that shallow ramps, beach launches etc are not a concern as the trailer ‘adjusts’ to the conditions on the day.
PIVOTING REAR CRADLE:
The unique swing rear cradle was the revolution that paved the way for the Supa Rolla series and has enhanced the performance of the Rollamatic to now offer full drive on capability. The fully adjustable rear frame pivots as the hull is pushed on to the boat changing the angle and the force required to launch or retrieve. The roller brackets are fully adjustable to cater for all hull types, from pressed alloy to fibreglass.
SELF CENTRING GUIDES:
To improve drive on performance or assist when winching on boats, the Rollamatic features oversized self-centring guides that direct the keel of the boat back to the centre should wind or tide play havoc at the ramp.
SUPERIOR KEEL ROLLER LADDER:
The Rollamatic is fitted with a rack of large cotton reel rollers that not only offer low rolling resistance for launch and retrieve, but carry the weight of the boat directly at it’s strongest point.
STANDARD FEATURES INCLUDE:
High grade steel with a heavy-duty corrosion resistant finish
Custom waterproof LED lighting system that won’t let you down
Heavy duty ‘swing-up’ jockey wheel as standard
Stylish UV stabilised mudguards that are virtually unbreakable
Australian standards approved couplings for security under tow
High grade light truck DOT approved tyres
