The XPLORE Series is lightning-quick and laser-focused on anglers’ favorite features.

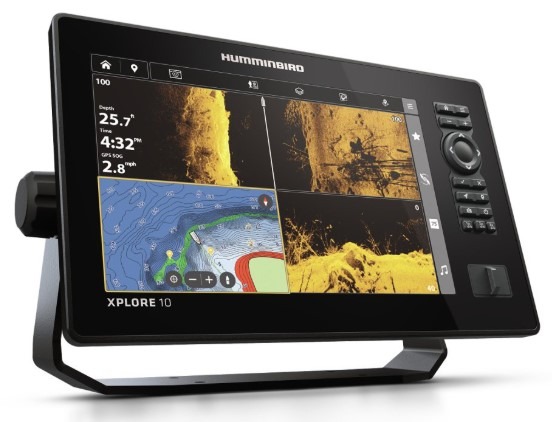

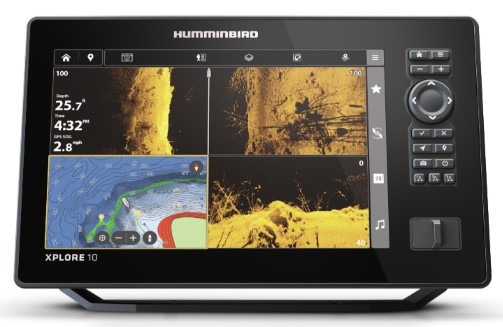

Humminbird Xplore 10 CMSI
THE XPLORE 10 CMSI+ features a 10” ultra-clear display with intuitive Cross Touch™, MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP Sonar and internal GPS. This XPLORE 10 MSI+ model includes Wi-Fi, NMEA 2000®, Bluetooth and Ethernet networking for compatibility with the One-Boat Network™ family of products from Humminbird, Minn Kota and Cannon.
Specifications:
Series
XPLORE
Display Size – Diagonal
25.65 cm
Display Pixel Matrix
WXGA 1280 x 800
Enhancements
Cross Touch Interface In Pane Touch Targets Anti-glare, edge to edge screen display Updated Home Screen and User Interface Updated Menu/Setting structure New Keypad Design Two Micro SD card slots Twist lock cable connections Wi-Fi Software Updates Utilizes the same power cable as APEX units Dual Band GPS for better position accuracy
Display Features
High-Def Display Engineered for Polarized Eyewear
Sonar Capability
MEGA Side Imaging+ MEGA Down Imaging+ Dual Spectrum CHIRP MEGA Live 2 Imaging+ & MEGA 360 Compatible
CHIRP-Frequencies Supported
Full: 150-220 kHz @ 25/42o Narrow: 180-240 kHz @ 25o Wide: 140-200 kHz @ 42o
Depth & Range – Sonar
MEGA Side Imaging+® Range: 800ft (244m) 455 kHz: 405-505 kHz 400ft (122m) MEGA: 1100-1200 kHz MEGADown Imaging+® Depth: 400ft (122m) 455 kHz: 420-520 kHz 200ft (61m) MEGA: 1125-1225 kHz
Fish Finder Functionality
Intuitive Cross Touch® Quick-Launch Home Screen
Connectivity
CE NMEA 2000® Bluetooth® Ethernet Wi-Fi MFi
Memory Card Slot
Duel Micro SD
Waterproof Rating
IPX7
Power Input
10-20 volts
Power Output Peak-to-Peak
8000 Watts
Power Output RMS
1000 Watts
Transducer Mount Location
Transom
GPS Chartplotting
Included
GPS Trackplotting
LakeMaster Compatibility
Yes
Coast Master Compatibility
Navionics Gold/HotMaps Compatibility
Navionics Platinum + Compatibility
Platinum Compatibility
Heading Sensor GPS Compatibility
Upgradable Software
Included in the box
XPLORE Fish Finder, Power Cable, Unit Cover, Gimbal Mount with Hardware and Knobs
Get in touch with the team to learn more or request a quote about the HUMMINBIRD XPLORE 10 CMSI.
