The XPLORE Series is lightning-quick and laser-focused on anglers’ favorite features.

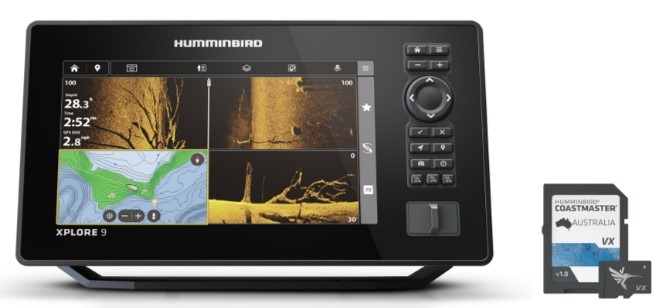

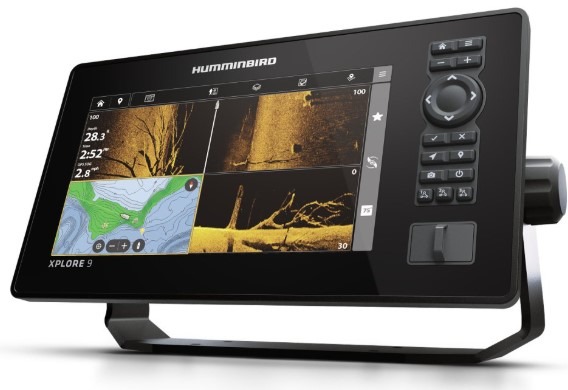

Humminbird Xplore 9 CMSI
Head Unit, Mounting Bracket, Power Cable and MSI Transducer. Also includes Coastmaster GPS Charts (SD Card)
THE XPLORE 9 CMSI+ features a 9” ultra-clear display with intuitive Cross Touch™, MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP Sonar and internal GPS. This XPLORE 9 MSI+ model includes Wi-Fi, NMEA 2000®, Bluetooth and Ethernet networking for compatibility with the One-Boat Network™ family of products from Humminbird, Minn Kota and Cannon.
Specifications:
Series
XPLORE
Display Size – Diagonal
22.86cm
Display Pixel Matrix
HD 1280 x 720
Enhancements
Cross Touch Interface In Pane Touch Targets Anti-glare, edge to edge screen display Updated Home Screen and User Interface Updated Menu/Setting structure New Keypad Design Two Micro SD card slots Twist lock cable connections Wi-Fi Software Updates Utilizes the same power cable as APEX units Dual Band GPS for better position accuracy
Display Features
High-Def Display Engineered for Polarized Eyewear
Sonar Capability
MEGA Side Imaging+ MEGA Down Imaging+ Dual Spectrum CHIRP MEGA Live 2 Imaging+ & MEGA 360 Compatible
CHIRP-Frequencies Supported
Full: 150-220 kHz @ 25/42o Narrow: 180-240 kHz @ 25o Wide: 140-200 kHz @ 42o
Depth & Range – Sonar
MEGA Side Imaging+® Range: 800ft (244m) 455 kHz: 405-505 kHz 400ft (122m) MEGA: 1100-1200 kHz MEGADown Imaging+® Depth: 400ft (122m) 455 kHz: 420-520 kHz 200ft (61m) MEGA: 1125-1225 kHz
Fish Finder Functionality
Intuitive Cross Touch® Quick-Launch Home Screen
Connectivity
CE NMEA 2000® Bluetooth® Ethernet Wi-Fi MFi
Memory Card Slot
Duel Micro SD
Waterproof Rating
IPX7
Power Input
10-20 volts
Power Output Peak-to-Peak
8000 Watts
Power Output RMS
1000 Watts
Transducer Mount Location
Transom
GPS Chartplotting
Included
GPS Trackplotting
LakeMaster Compatibility
Yes
Coast Master Compatibility
Navionics Gold/HotMaps Compatibility
Navionics Platinum + Compatibility
Platinum Compatibility
Heading Sensor GPS Compatibility
Upgradable Software
Included in the box *Applies for CMSI+ (104675)
XPLORE Fish Finder, Power Cable, Unit Cover, Gimbal Mount with Hardware and Knobs. Coastmaster AUS Chart Card.
PLUG-AND-PLAY MINN KOTA CAPABILITY Share waypoints between XPLORE and your phone via the One-Boat Network® App
Get in touch with the team to learn more or request a quote about the HUMMINBIRD XPLORE 9 CMSI INC NAV CARD.
